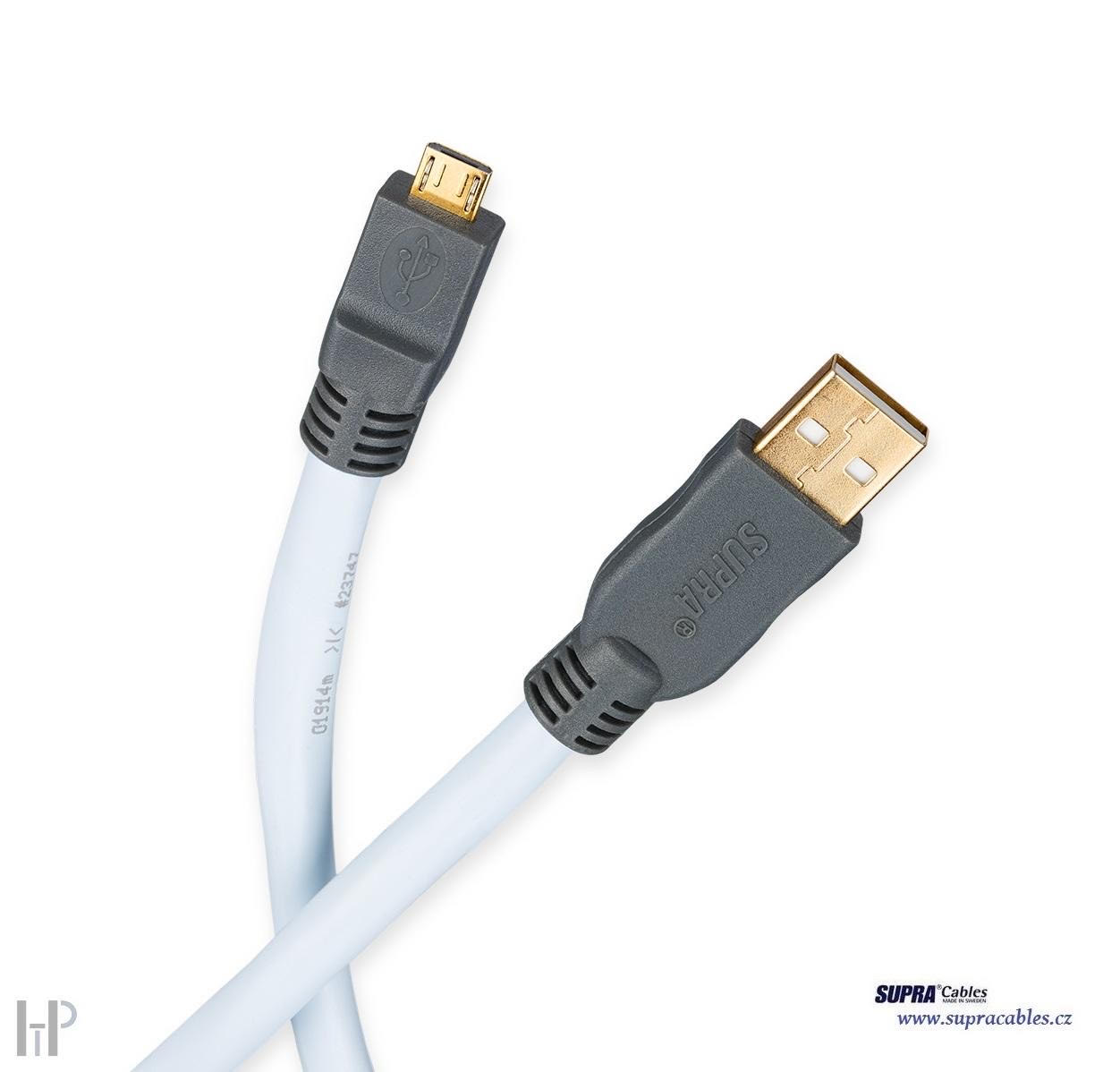

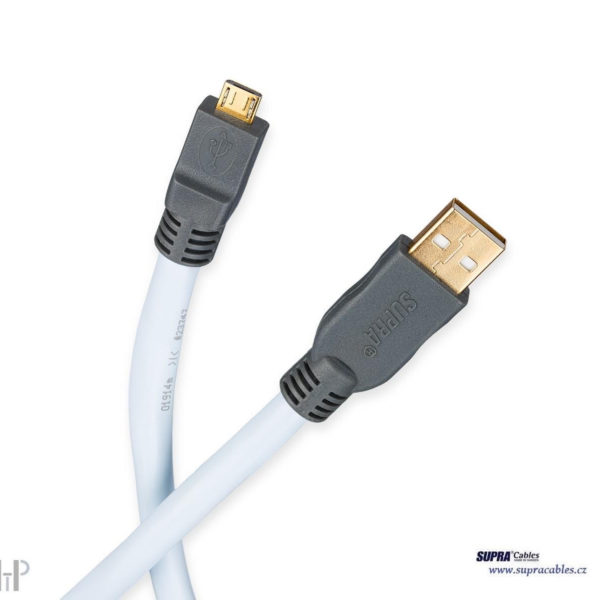

SUPRA USB 2.0 A-Micro B Blue 1 m

High Performance, High Speed, type A-Micro B / Hi-Speed Certified / IceBlue

480 Mbit / s

Mechanical Specifications

Standard USB 2.0 Hi-Speed
Connectors USB A male ► Micro USB male
Signal Direction Bi-directional
Application Examples  Computer peripherals, DAC's
Solder Tin Almit SR-34 Super
Cable strain relief Molded connector housing

Electrical properties

Number of pairs 2 pieces
Lead area 0.24 / 23 mm2 / AWG
Number of strands  19 pieces
Strand dimension Ø 0.127 mm
Lead material Tin plated oxygen-free 5N copper
Insulation Low capacitance PE
Shielding Aluminized PET foil
Jacket Heat and age resistant PVC
Flame retardant No
External dimension Ø 7.5 mm

Electrical performance

Data transfer rate 480 Mbit / s
Resistance 72 Ohm / km
Capacitance 52 pF / m
Impedance 90 Ohm
Velocity factor 0.66x C (speed of light)
