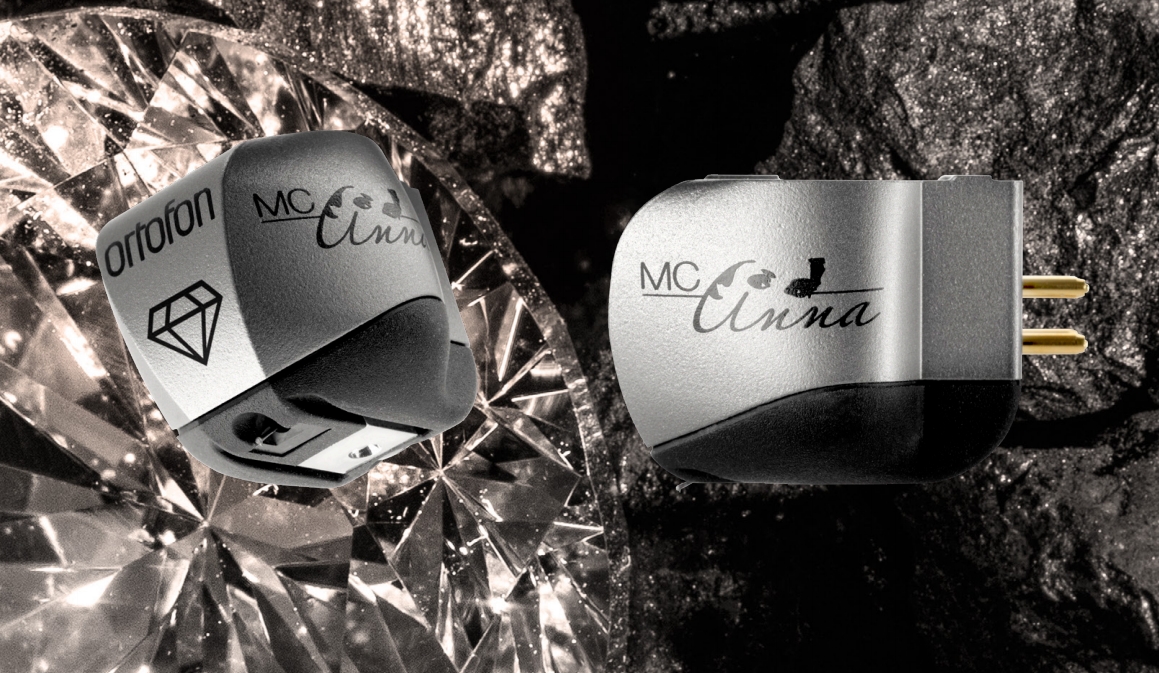

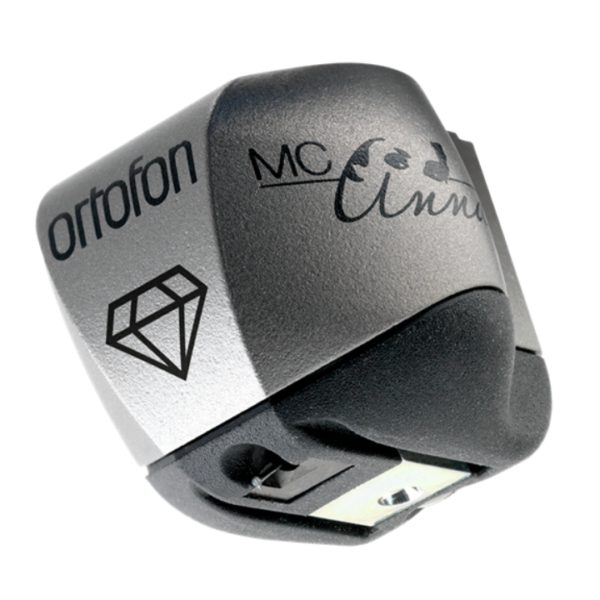

Ortofon MC Anna Diamond

The MC Anna Diamond Technical data

Output voltage at 1000 Hz, 5cm/sec.  –  0.2 mV
Channel balance at 1 kHz  –  0.5 dB
Channel separation at 1 kHz  –  25 dB
Channel separation at 15 kHz  –  22 dB
Frequency response  –  20 Hz – 20 kHz +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force  –  80 µm
Compliance, dynamic, lateral  –  9 µm/mN
Stylus type  –  Special polished Nude Ortofon Replicant 100 on Diamond Cantilever
Stylus tip radius  –  r/R 5/100 µm
Tracking force, recommended  –  2.4 g (24 mN)
Tracking angle  –  23°
Internal impedance, DC resistance  –  6 Ohm
Recommended load impedance    > 10 Ohm

Cartridge body material  –  SLM Titanium
Cartridge colour  –  Silver/Black
Cartridge weight  –  16 gram
