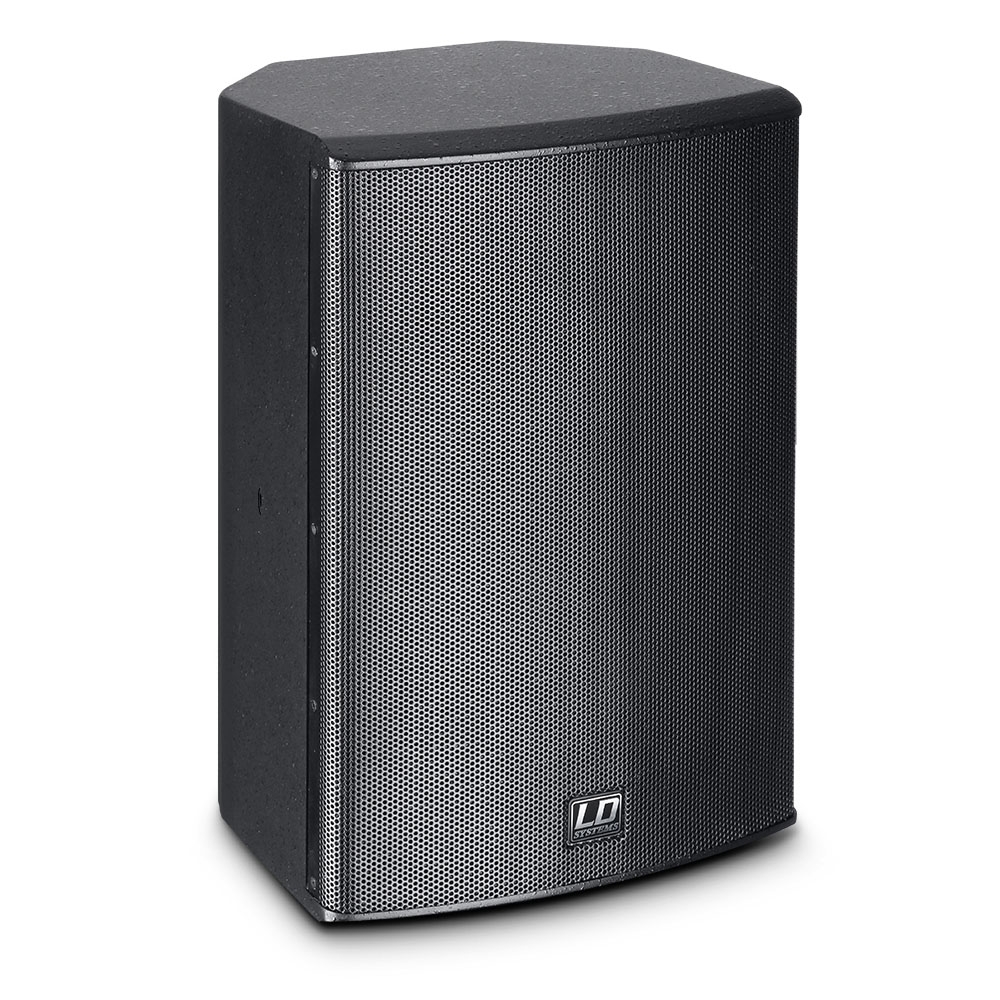

LD Systems SAT 82 G2

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.
The bass-reflex design is loaded with an 8" custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz – 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.

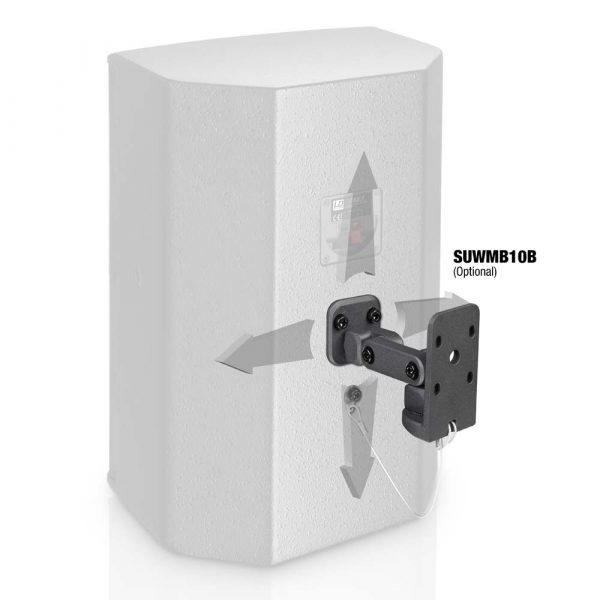

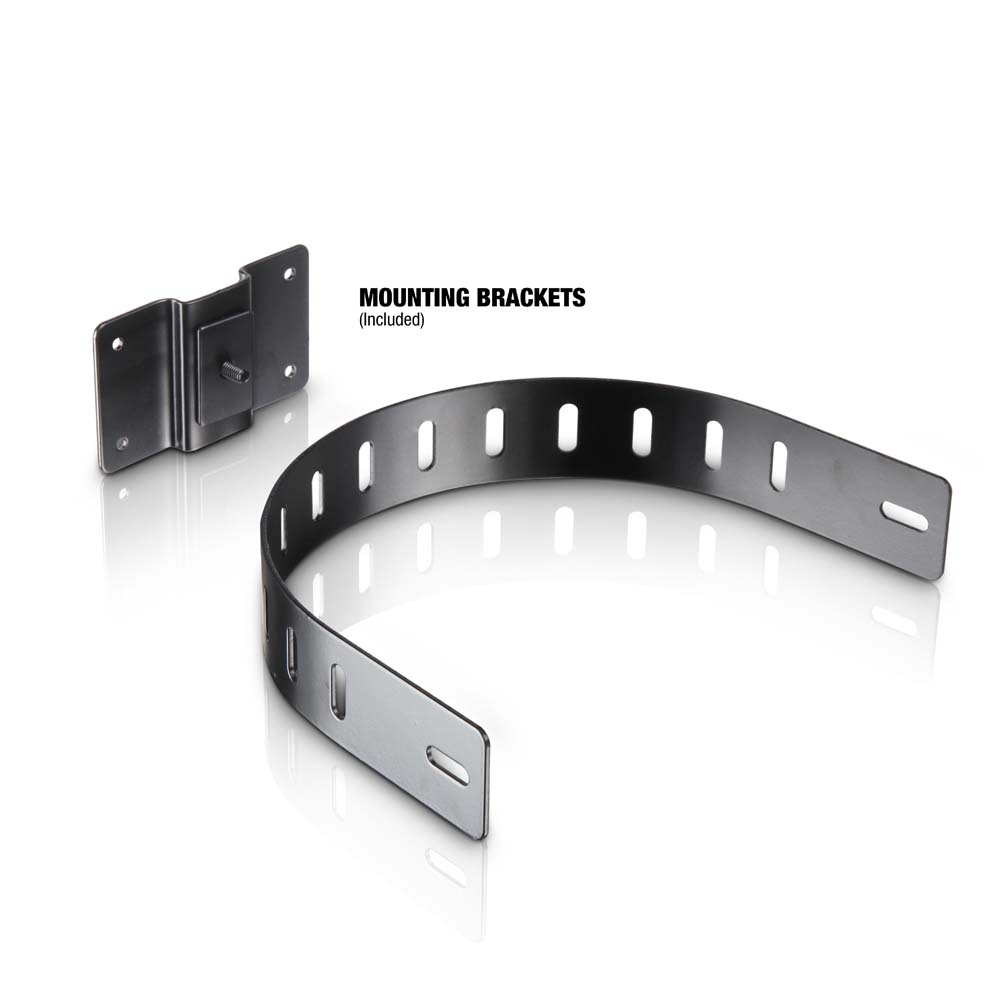

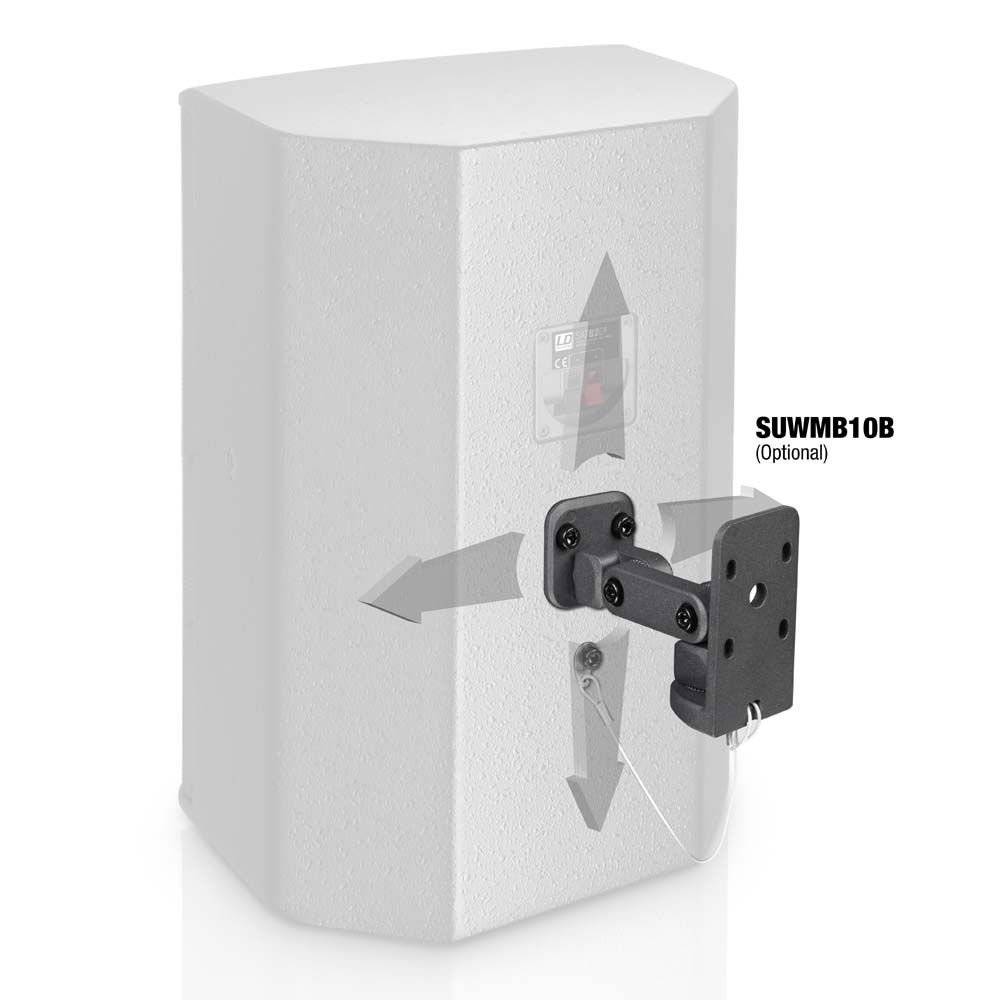

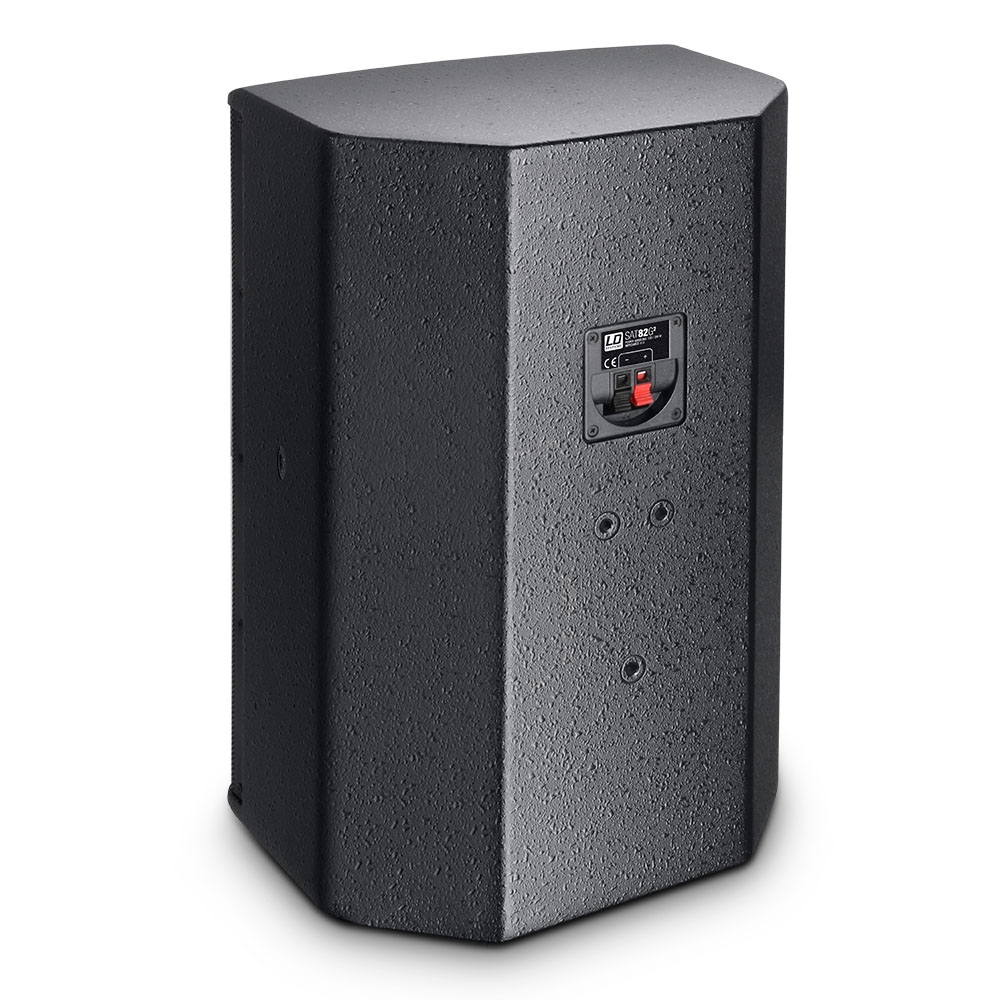

The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.

Product type: Installation Loudspeakers
Type: Wall-mounted Loudspeaker
Low/mid driver dimensions: 8 "
Woofer Size: 203 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 "
HF Driver Size: 25 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Dispersion (H x V): 60 x 60 °
Load rating (RMS): 120 W
Frequency response: 50 – 20000 Hz
SPL (1W/1m): 93 dB
Max. SPL: 114 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 1
Speaker input connections: Clamp connector
Cabinet material: 15 mm MDF
Cabinet surface: texture paint
Cabinet colour: black
Cabinet construction: vented
Width: 274 mm
Height: 410 mm
Depth: 243 mm
Weight:7 kg
