LD Systems DEEP2 4950
- Product type: Power Amplifiers
- Type: PA Power Amplifiers
- Rated ouput power (1kHz @ 4 Ohms): 4 x 810 W
- Rated ouput power (1kHz @ 8 Ohms): 4 x 490 W
- Rated ouput power (1kHz @ 8 Ohms, bridged): 2 x 1600 W
- Output circuitry: Class H
- Frequency response: 20 – 20000 Hz
- Total Harmonic Distortion (THD): < 0.1 %
- Signal-to-noise ratio: 105 dB
- Damping factor: > 400
- Crosstalk: >70 dB
- Gain: 38 dB
- Input sensitivity: 0.775 V
- Protection circuits: DC protection , short circuit , thermal overload

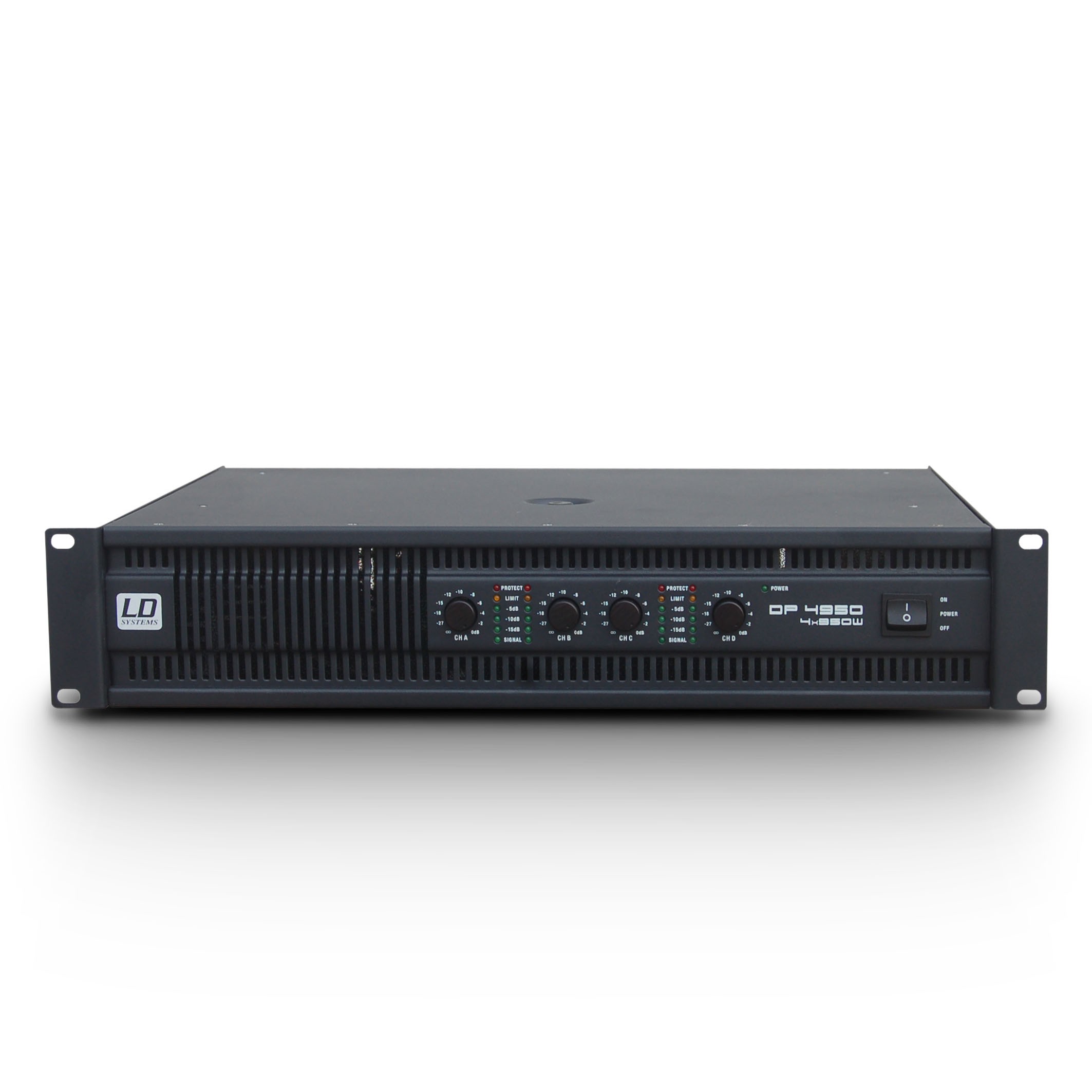

- Controls: 4 x volume , bridge/stereo mode selector , ground lift , mains switch (on/off)
- Indicators: Limit , Power , Protect (protection circuit engaged) , Signal

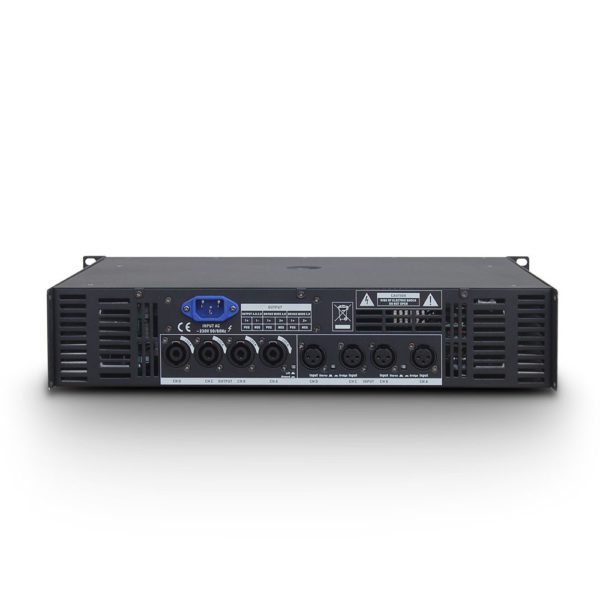

- Loudspeaker outputs: 4
- Speaker output connections: Speakon compatible
- Cooling: highly efficient, automatic
- Operating voltage: transformer
- Operating voltage: 230 V AC / 50-60 Hz
- Weight: 19,6 kg
